Dealer selling Satellite  Receivers











MULTIVIEW  HD - PVR  Satellite Receiver





World wide product      Size only 160x100x40mm

















Ideal for Motor Homes Amazing for Size and Features.  HDMI output and with PVR. Record to USB stick your favourite programs. Receiver is preloaded with latest Freeview Channels plus other subscription channels.

!f you have a SKY subscription, with the SKY card the programmes you have at home can be seen on this receiver and even in HD.  Takes blue sky cards (NZ 45) numbered on the cards rear.    Insert card upside down (Numbered side up) with Gold contacts inserted in receiver first.

Yes this is a HD receiver.  Very small receiver (using latest technology) very big on features. Has the WOW factor. Top of the line unit, easy to use, and amazing  picture quality and very sensitive tuner.

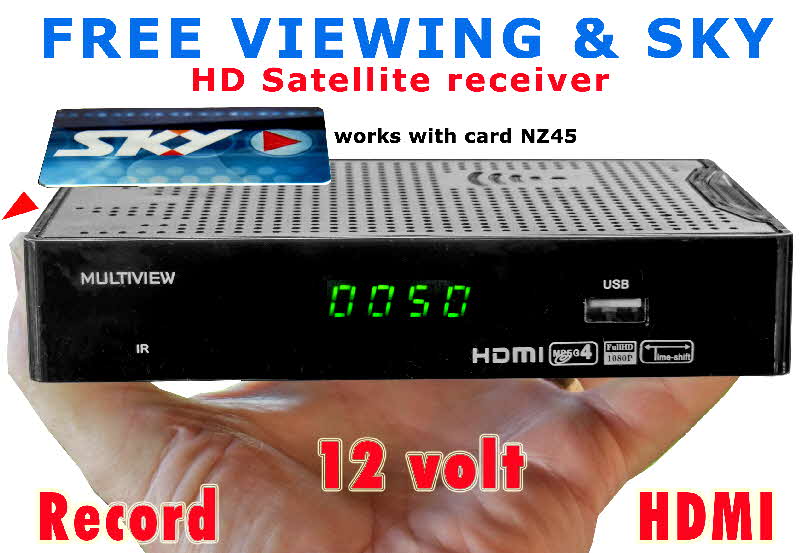

Multiview-Rcvr





Multiview Back











MultiView HD Receiver











Multiview remote





1) Fully MPEG-4 H.264/AVC. Main Profile Level 3 & High Profile Level 4.1 Complaint.

2) Fully MEPG-2 MP@HL & MP@ML;MPEG-1 Layer I, II, III, Dolby Audio (AC3) Compliant.

3)SCPC & MCPC Receivable from C/KU Band.

4) DiSEqC1.0/1.1/unicable/1.2/1.3 (USALS) Supported.

5) NIT Search, MPEG-5, HDMI1.3 Supported.

6) PVR (External USB x 2 One front panel and 1 rear panel), EPG For 7 Days Supported.

7) Multi-lingual DVB Subtitle And Teletext supported.

8) Teletext And Subtitle Out Through OSD.

9) Multimedia Files Playback (by USB x 2).

10) Automatic And Manual Channel Scan Options.

11) Multi-lingual On Menu Screen Supported (English, French, Deutsch, Spanish and Portuguese, etc.)

12) Multiple Display Mode: 1080i/720p/570p/576i/480p

13) MPEG-2/H.264 Hardware Decoding, Videotext Decoder.

14) HDMI output Video and sound and AV Output  Via Mini Jack

15) Screen Format: 4:3/16:9 Auto.,

16) CA (One Slot), 10/100 Mbit Ethernet Interface.

17) Upgrade Software & Update Channel Database Through USB2.0 Port.

18) Directly Bouquet-lists.

Board configuration

CPU: 2 x MIPS24Kef

Main CPU , MIPS24Kef (32KI, 32KD) -- 594Mhz

2nd CPU , MIPS24Kef (8KI, 16KD) -- 396Mhz

DDR3 1108MHz 16bit

Memory Clock 27MHz20ppm

8MB Serial Flash

Single Tuner

DVB-S2 demodulator

Power Supply

Input 100V-240V 50/60Hz

Power Consumption

30W Max/1W Standby

Standard Receiver Standard

DVB-S2 Standard (DTSI EN 302 307)

Input Frequency Range

950MHz~2150MHz

Input Signal Level

-25dBm ~ -65dBm

Demodulation

QPSK, 8PSK, 16APSK

Transport Stream

MPEG-2 ISO/IEC 13818 Transport Stream Specification

MPEG Profile Level

MPEG-2 SD, MPEG-2 HD, H.264/AVC SD, H.264/AVC HD

LNB Power & Polarisation

Vertical +13.5V, Horizontal 18V, Current: MAX 500ma,

Multi Satellite Receiving

22K switcher, DiSEqC1.0, DiSEqC1.1, Unicable, DiSEqC1.2, USAL

A/V Output ports

Mini Jack with CVBS, Left/Right analog audio output also HDMI(HDCP),

Aspect Ratio

Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box.

Audio Decoding

MPEG1 Layer I, MPEG1 Layer II, MPEG 1 Layer III, MPEG2, AC3.

Audio Mode

Stereo/MONO/Left/Right

DVR supporting

DVR with USB HDD, Time shifting with USB HDD

USB2.0 High Speed Host

1USB2.0 Port, USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card or FW Upgrading.

File System

FAT12, FAT16, FAT32, NTFS (only support first partition)

Media Supporting

JPG, BMP, MP3, WMA

Ethernet Interface

10/100Mbit

Storage Temperature

0ºC To +50ºC

Accessories:

1x AC adapter

1x Remote control

1x AV cable

1x User manual

1 x Cig lighter power source cable











Using your SKY® card in another receiver, may be a breach of contract you have with SKY® Network
